How Does an Airgun Chronograph Work? The Science Explained
Most shooters have used a chronograph at some point, but far fewer understand what is actually happening inside the device when a pellet passes through it. Knowing how does an airgun chronograph work is not just an interesting technical detail - it directly affects how you interpret your data, why readings sometimes vary, and how to position the device for results you can trust.
This guide breaks down the mechanics in clear, practical terms. No engineering degree required - just a sharper understanding of the tool you are already using.
What a Ballistic Chronograph Actually Does: The Core Principle
A chronograph has one job: measure how fast a projectile is travelling. It does this by recording the time taken for a pellet or bullet to travel between two fixed sensing points - then converting that time-over-distance measurement into a velocity figure.
The distance between those sensing points is fixed by the manufacturer. The time measurement is extremely short - typically in the region of microseconds. From those two values, velocity is a straightforward calculation: distance divided by time.
The simplicity of that principle is what makes chronographs reliable and helps determine projectile speed more consistently. The complexity - and the source of most reading variations - lies in how reliably the device can detect the pellet at each sensing point, and whether anything interferes with that detection.
What the Chronograph Is Measuring
A chronograph measures the time elapsed as a pellet travels between two sensors a fixed distance apart. That elapsed time, combined with the known distance, produces a velocity reading. Everything else - FPS display, ft/lb calculation, shot string statistics - is derived from that single measurement.
How Optical Sensors Detect a Pellet and Calculate Muzzle Velocity
The vast majority of consumer-grade chronographs use optical sensors - specifically, pairs of sky screens or diffuser panels positioned above a narrow channel through which the pellet travels. Each screen houses a light-sensitive detector that registers a change in ambient light intensity.
When a pellet passes over a sensor, it momentarily shadows the detector below - that shadow event is the trigger. The device records the precise timestamp when the shadow breaks the first sensor, then does the same at the second. The difference between those two timestamps is the elapsed travel time.
An internal clock - accurate to a very fine resolution - handles the timing. The calculation is then applied, calculating velocity from the elapsed time between the two sensor triggers:
- Sensor 1 triggers: timestamp recorded
- Sensor 2 triggers: second timestamp recorded
- Elapsed time calculated from the difference
- Velocity = sensor spacing divided by elapsed time
- Result displayed in feet per second (FPS)
Some newer models use Doppler radar to measure projectile velocity without physical screens.
Some chronographs use acoustic sensors rather than optical ones, detecting the pressure wave produced by the pellet in flight. In practical terms, a chrono can be optical, acoustic, or radar-based depending on how it detects the shot. These are less common in airgun use, where velocities are lower and the acoustic signature is subtler, but the underlying time-over-distance principle is identical.
Optical vs Acoustic Sensors
Optical chronographs are the standard for airgun use. They are reliable at subsonic and transonic velocities and do not require the rifle to generate a strong acoustic signature. Acoustic models are more commonly used in firearms testing, where muzzle energy is sufficient to produce a consistent pressure event at the sensor. Radar-based units can also be more compact because they do not need physical screens in front of the shot path.
How Time-Over-Distance Data and Pellet Weight Become FPS and ft/lb Readings

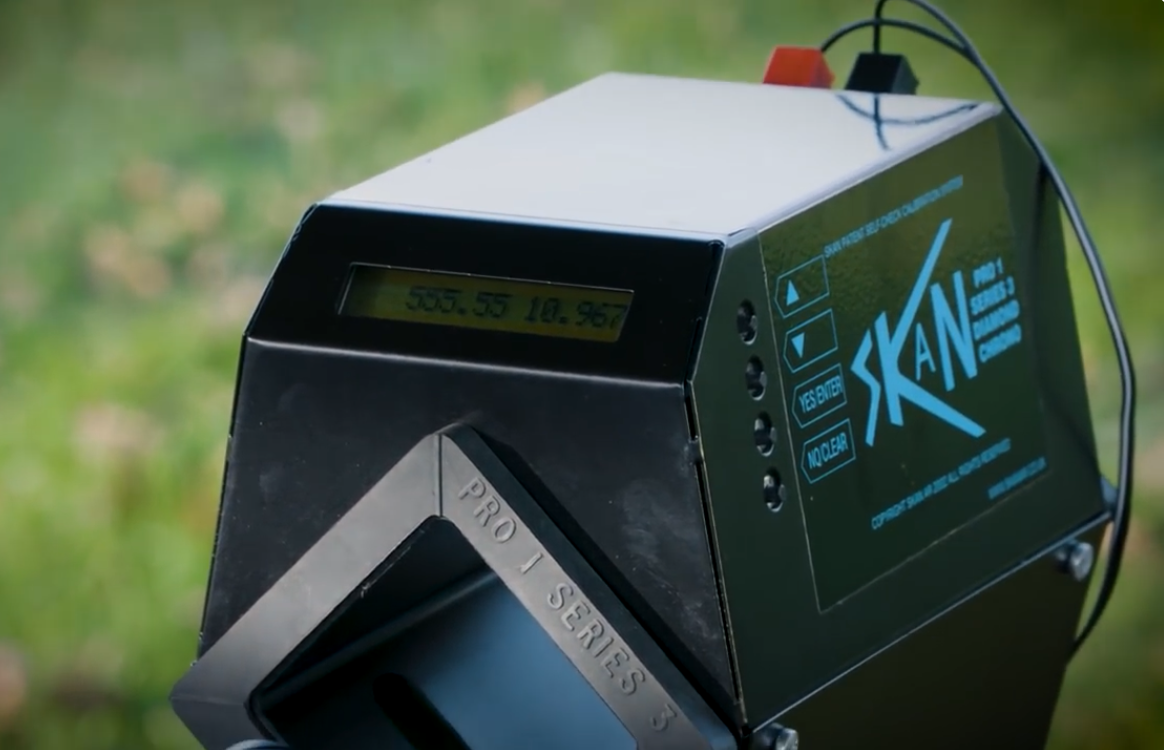

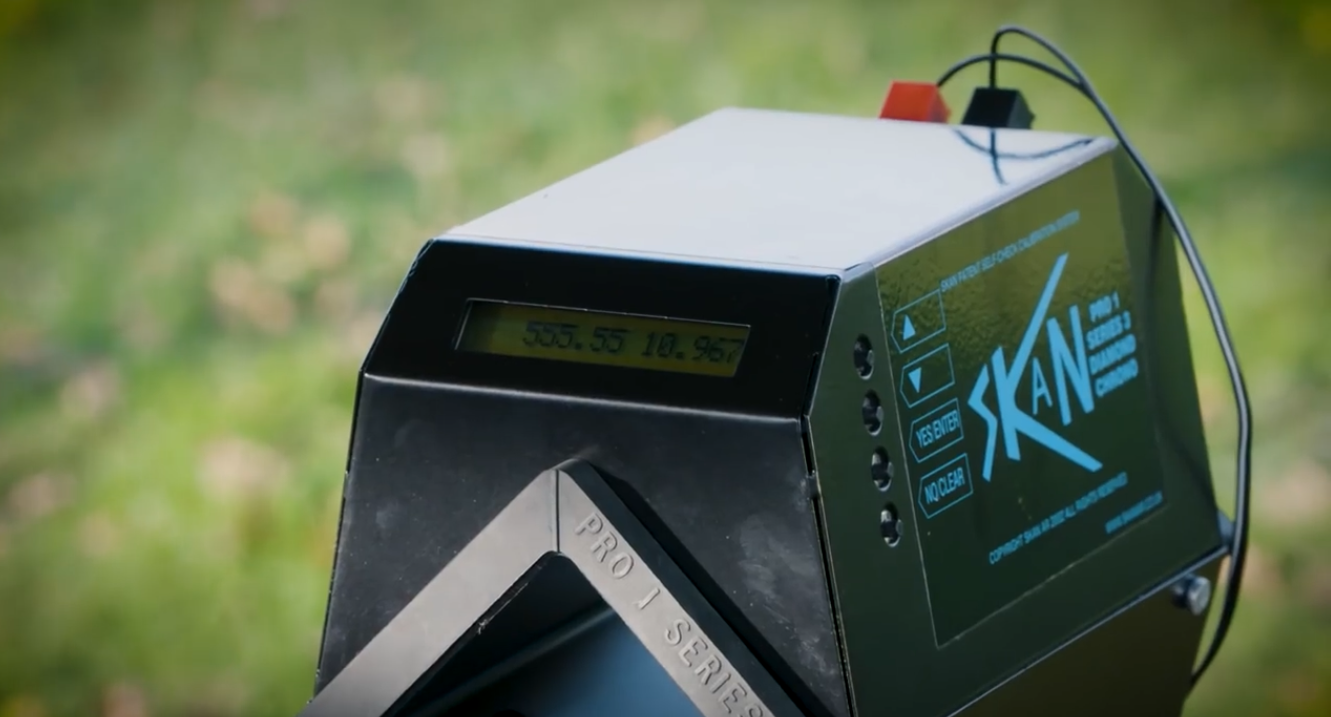

Once the device has a velocity figure in feet per second, the primary reading on projectile velocity and speed is complete. Most modern chronographs also calculate muzzle energy in foot-pounds, but that requires one additional input: pellet weight.
The kinetic energy formula used is straightforward. Energy (in ft/lb) is calculated from pellet weight in grains and velocity in FPS — specifically, pellet weight in grains is divided by 7000 to convert to pounds mass before the calculation is applied. The chronograph either uses a pellet weight figure you enter manually, or prompts you to input it before the session. Without an accurate weight figure, the ft/lb readout will be wrong — the velocity figure itself remains unaffected.
Always Enter Pellet Weight Accurately
The FPS reading comes from the device's own measurement. The ft/lb figure depends entirely on the pellet weight you provide. If your chronograph is set to a different pellet weight than the one you are shooting, the energy readout will be inaccurate - even if the velocity measurement is perfect.
For regulated airguns operating within UK legal limits, the ft/lb figure is particularly relevant. It is the legal benchmark, not FPS, so accurate pellet weight entry is essential when using chronograph data for compliance purposes and checking the rifle’s power for legal and tuning purposes.
Shot string data - average velocity, extreme spread (ES), and standard deviation (SD) - is calculated across multiple shots. Both optical and radar chronographs can provide these statistics. Some chronographs can also connect to computers for more detailed analysis of shot strings over time. These statistics give a much clearer picture of rifle consistency than any single reading, and they are where the real value of a chronograph session lies for performance-focused shooters, offering valuable insights when comparing pellets or setups.
Why Readings Vary: Lighting, Sensor Spacing, and Pellet Profile
Even with a well-functioning rifle and correctly set-up chronograph, readings will vary between shots to some degree. Some of that variation is genuine - the rifle is not producing identical muzzle velocity on every shot. Some of it, though, comes from the chronograph itself and how it is being used.
Lighting Conditions
Optical sensors depend on a consistent ambient light source to detect the pellet's shadow. Insufficient light means the detector cannot see a clear contrast between ambient and shadowed states. Rapidly changing light - such as shooting in dappled shade, near a window with passing clouds, or under flickering artificial lighting - can cause missed triggers or inaccurate timestamps.
Most chronographs recommend diffuse, even lighting - typically an overcast sky outdoors, or a dedicated lamp indoors. Direct sunlight from a low angle can also create false triggers on some models if it hits the sensors directly. Consistent lighting is not just a preference; it directly affects reading reliability.
Sensor Spacing
The distance between sensors is fixed by the manufacturer and built into the device's calculation, so the timing starts and stops as the projectile passes each sensing area. This spacing is precise and not adjustable - any physical distortion of the chronograph body, damage to the sensor housing, or obstruction between the screens will corrupt the measurement. This is why chronographs should be stored carefully and inspected before use.

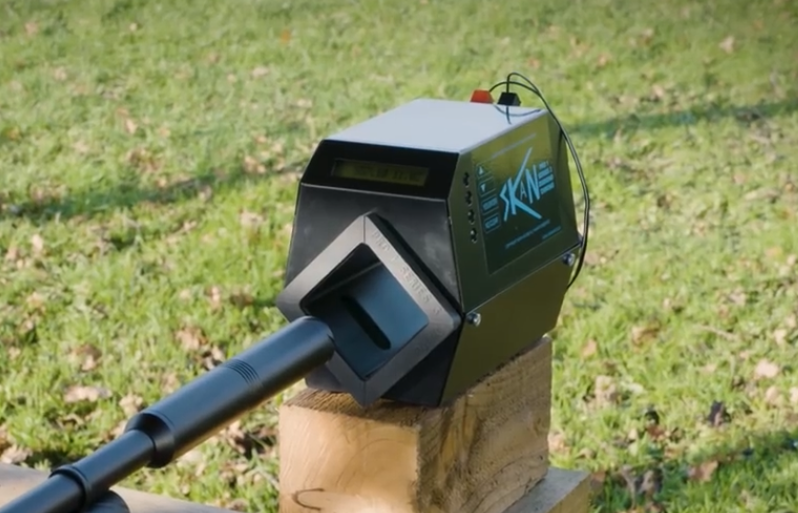

Some designs sit directly on the barrel, which can reduce alignment issues between the shot path and the measuring unit.
Pellet Profile and Consistency
The shape and diameter of a pellet, and the exact type of airgun ammunition you use, affect how cleanly it breaks the sensor beam. A round-nosed pellet and a pointed pellet of the same calibre will produce slightly different shadow events - the pointed pellet will begin breaking the beam earlier relative to its centre of mass. This does not normally produce significant error, but deformed or inconsistent pellets can create irregular shadow events that affect timestamp accuracy. The same principle applies whether an airgun shooter is testing pellets for target work or pest control, and it is just as relevant whether you shoot entry-level rifles or high-performance Air Arms air rifles.
Using consistent, quality pellets from the same production batch reduces this source of variation. Pellet-to-pellet consistency matters both for the rifle's performance and for the chronograph's ability to read it reliably.
Regulated vs Unregulated Rifles: Why Consistency Matters on the Chronograph
When you shoot a string of ten pellets through a chronograph, the spread between the highest and lowest readings tells you a great deal about how consistently the air rifle is delivering air to the pellet.
In an unregulated PCP, reservoir pressure drops with every shot. Because the valve is working against a progressively lower supply pressure, each shot is slightly different from the last. Early shots in a fill may produce higher velocities; later shots, as pressure falls, will show a decline. The chronograph will show a wider extreme spread across a full fill.
A regulated PCP air rifle addresses this directly. A pressure regulator sits between the reservoir and the valve, delivering a consistent supply pressure to the valve regardless of how much air remains in the cylinder - within the regulator's working range. The result is that the valve receives the same input pressure on shot one and shot forty, producing more consistent muzzle velocity across the fill.
What This Looks Like on the Chronograph
A regulated rifle will typically show a tight, consistent shot string - low extreme spread and low standard deviation - across its usable fill range. An unregulated rifle will show a characteristic velocity curve: rising as pressure settles, plateauing briefly, then declining as the reservoir empties. Chronograph data makes this curve visible and helps you identify your rifle's optimal fill window. Compared over time, those trends can also provide insights into shooting habits and environmental effects.
The Air Arms Ultimate Sporter is a PCP built on over 40 years of British engineering expertise and developed from a platform with multiple Airgun of the Year wins to its name. Its action is designed to maintain consistent valve output across the fill, which is precisely what produces tight, meaningful shot strings when you put it over the chronograph. When a rifle is this consistent, chronograph data becomes a genuinely useful performance tool for tracking progress towards optimal performance rather than a collection of variables to untangle.
For competitive shooting, this consistency is not just a nice feature - it is crucial to reliable accuracy at distance, whether you are shooting a regulated PCP or a precision spring-powered rifle such as the Air Arms Pro Sport. Shot-to-shot velocity variation translates directly into point-of-impact variation. Tight chronograph strings are the measurable evidence of a rifle working as it should.
How to Position and Use a Chronograph for Reliable, Repeatable Results
The chronograph is only as useful as the setup around it. It is more than just a tool when you are trying to judge setup quality, because poor positioning introduces variables that have nothing to do with the rifle - and those variables will appear in your data as if they do.
Chronograph Setup Method

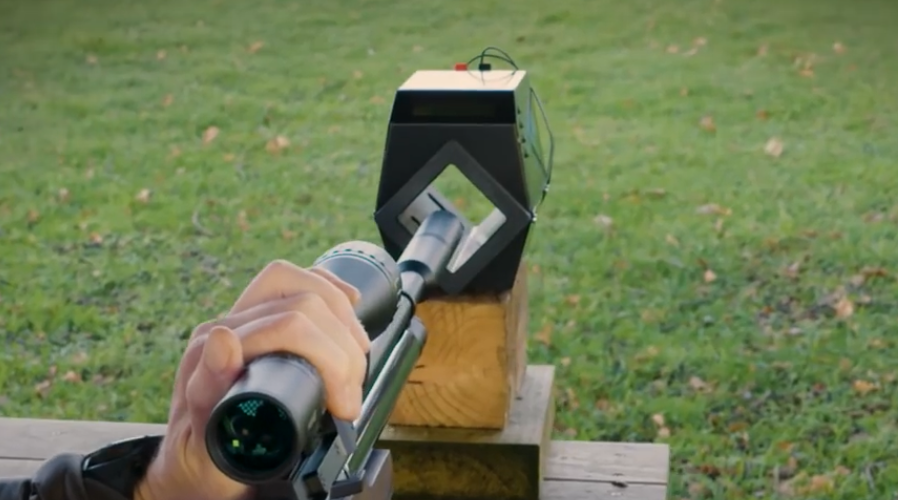

Align to the bore axis
The pellet must travel centrally over both sensors, passing equidistant from each side of the channel. Mount the chronograph so it is centred on the bore axis - not canted to one side. In air rifle shooting, even small alignment errors can distort readings. A pellet travelling off-centre can clip a sensor housing or create an irregular shadow event.
Set the correct muzzle-to-sensor distance
Most chronograph manufacturers recommend a distance of around one to two metres from the muzzle to the first sensor. Too close risks muzzle blast affecting the sensors. Too far introduces pellet yaw - a slight tumbling motion - that can cause erratic readings. Check your device's manual for its specific recommendation. Different models also have different operating ranges.
Establish consistent lighting
Outdoors, an overcast sky provides ideal diffuse light. Indoors, position a lamp above the chronograph to create even, consistent illumination across both sensor bays. Avoid shooting with a low sun directly in line with the sensors, and avoid environments where light levels change rapidly.
Shoot a warm-up string
The first few shots after filling a regulated rifle may sit outside the regulator's plateau as pressure settles. Discard the first two or three readings from a fresh fill. On a regulated rifle, the plateau will establish quickly; on an unregulated rifle, note where the curve flattens and focus your analysis there. Make sure each pellet is fired through the same part of the sensor window.
Record and analyse the full string
Shoot a minimum of ten shots for a meaningful string. Record average velocity, extreme spread, and standard deviation. Single readings tell you very little - the statistics across a string tell you everything about how your rifle is performing. This matters to airgun enthusiasts who want repeatable data rather than one-off readings.
One final point: repeat the session consistently across visits. Chronograph data is most valuable when compared over time - after a service, after a pellet change, or after adjusting a regulator setting. Some units can reveal patterns useful to an airgun enthusiast comparing conditions from one visit to the next. A single session gives you a snapshot; multiple sessions, taken under the same conditions, give you a trend.
Do Not Rely on a Single Reading
A single FPS figure from one shot is almost meaningless in isolation. It cannot tell you whether the reading reflects the rifle accurately, or whether a lighting variation, pellet inconsistency, or sensor alignment issue produced a false result, whether you are comparing units such as an AirForceOne chronograph or checking whether accessories such as scopes have affected consistency in how the rifle is shot over repeated sessions. Always work from a full shot string of at least ten shots before drawing any conclusions.
