Air Arms Moderators
Sometimes, when you need a follow up shot, or when you need to be quiet in order to carry out your hunting, a moderator is a must. Large pest control jobs often require the use of moderators to allow the rifle operators to move around undetected. When fitted to the end of the barrel, the moderator reduces the air flow and noise of the pellet exiting the barrel.
The Q-Tec has exceeded even our high expectations and we believe it will exceed yours too. We make the world’s finest ariguns – and now we’ve produced the world’s best moderator. It’s time to bring Q-Tec performance to your shooting.
Moderators

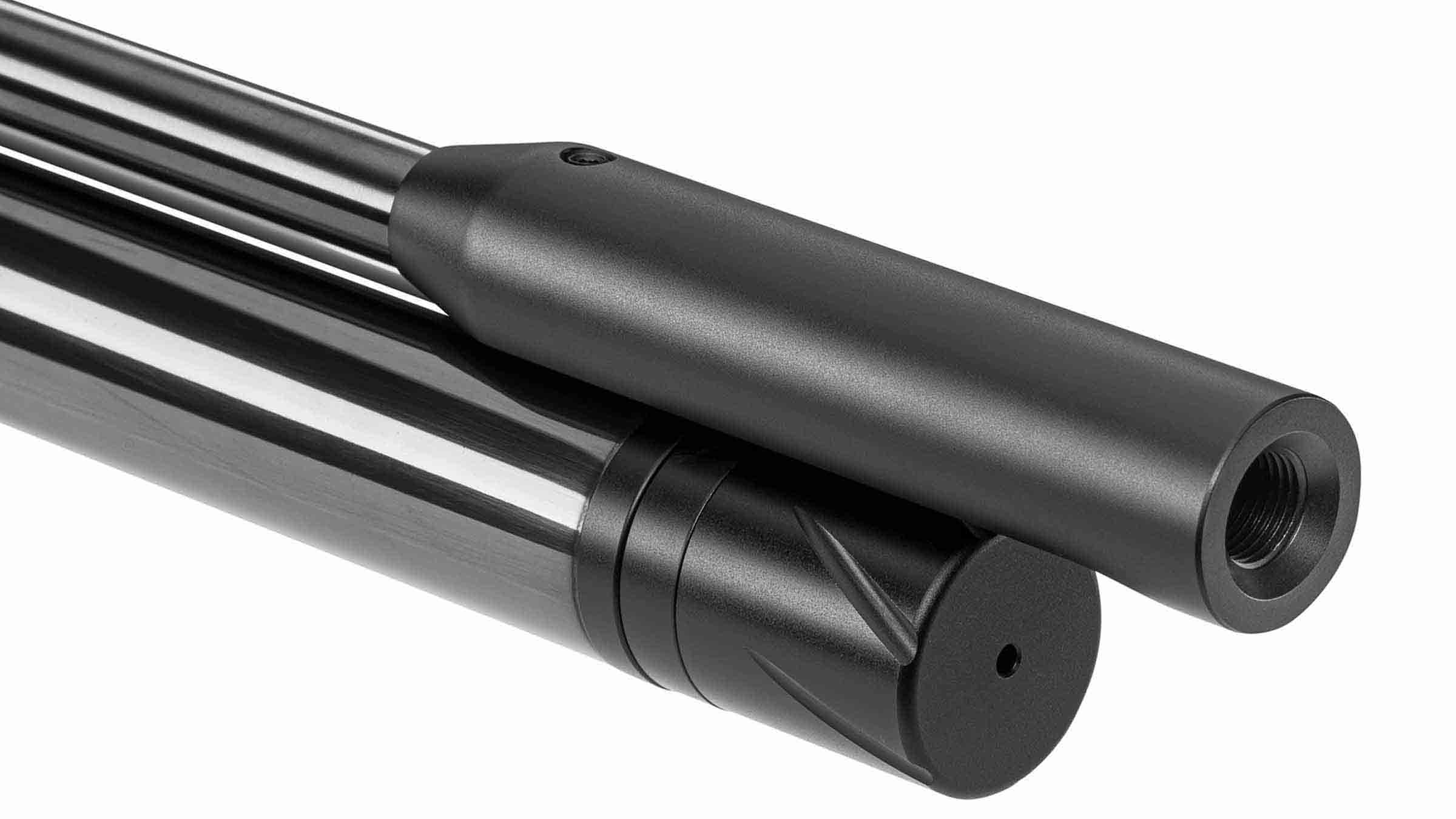

Moderator Adaptor 1/2" UNF Female Thread
This adaptor allows the user to fit a 1⁄2" UNF male thread to their HFT500. This adaptor will also fit the
XTI, but it will leave a small gap between the barrel's major OD and the end of the adaptor.
The adaptor is secured using an M4 set screw that locates into a dimple on the barrel.
• Weight - 90g
• Length - 120mm
• Diameter - 25mm
• Designed for - HFT500

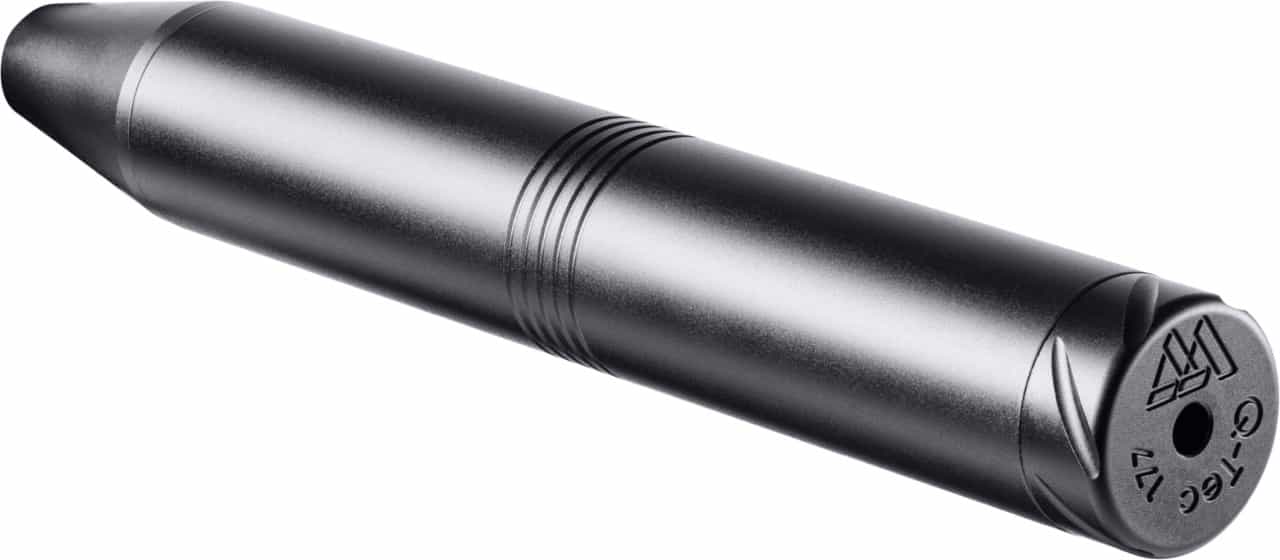

Q-Tec Moderator 15mm Slip
The Q-Tec 15mm slip-fit moderator was designed for use with the Air Arms S200 model rifles. This
moderator is calibre-specific and is available in .177 (4.5mm) and .22 (5.5mm) calibres.
The moderator is fixed using an M5 set screw that pinches onto the barrel.
• Weight - 197g
• Length - 219mm
• Diameter - 31.25mm
• Designed for - S200 rifle and barrels with a 15mm diameter muzzle

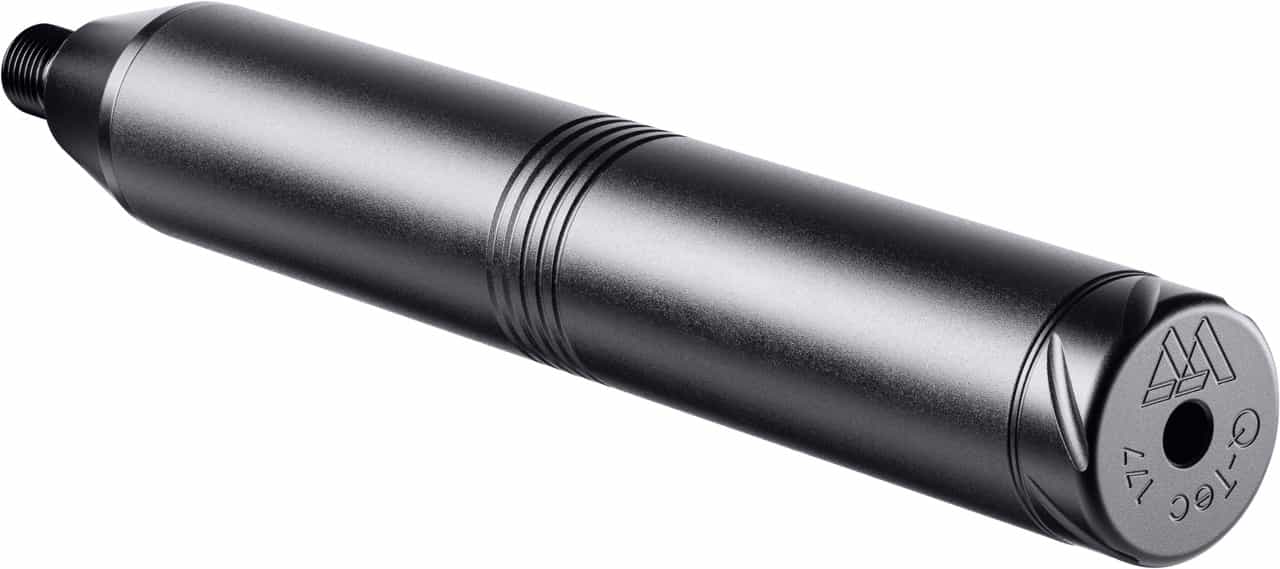

Q-Tec Moderator UNF Male
The Q-Tec 1⁄2" UNF - Male moderator was designed for use with any rifle that has a 1⁄2" UNF female
thread at the muzzle. Air Arms specific models are the S510/500 range (excluding the Tactical
models) and the TX Hunter Carbine models. This moderator is calibre-specific and is available in .177
(4.5mm), .22 (5.5mm) and .25 (6.35mm) calibres.
• Weight - 197g
• Length - 219mm
• Diameter - 31.25mm
• Designed for - S510/500 range (excluding the S510 Tactical) and TX Hunter Carbine

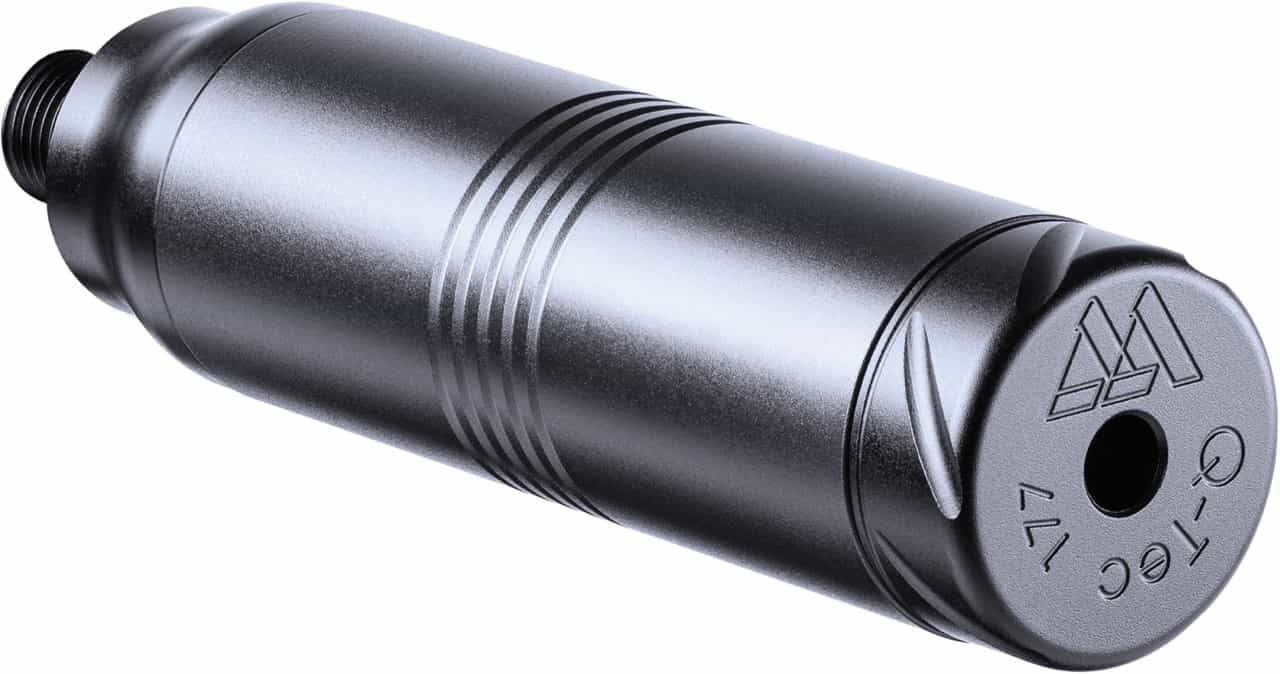

Q-Tec Short Moderator UNF Male
The Mini Q-Tec moderator is a shortened version of the full Q-Tec moderator and is available in 1⁄2"
UNF – male fittings and 10mm slip fit. These moderators are calibre-specific and available in .177
(4.5mm) and .22 (5.5mm) in both UNF and 10mm slip fit, and .25 (6.35mm) in 1⁄2" UNF – male only.
The mini Q-Tec has five rings machined into the tube, halfway along the length.
• Weight - 134g
• Length - 135mm
• Diameter - 31.25mm
• Designed for - S510/500 range, the S410/400 range and any gun with a 1⁄2" UNF –
female thread at the muzzle or a 10mm diameter muzzle

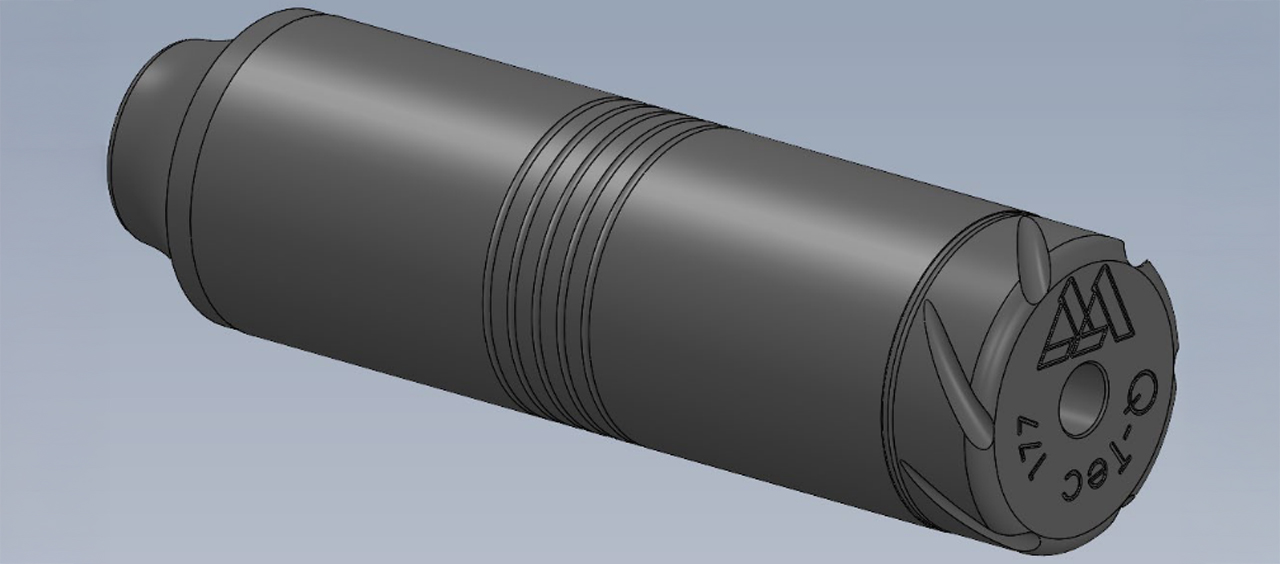

Mini Q-Tec moderator
The Mini Q-Tec moderator is a shortened version of the full Q-Tec moderator and is available in 1⁄2"
UNF – male fittings and 10mm slip fit. These moderators are calibre-specific and available in .177
(4.5mm) and .22 (5.5mm) in both UNF and 10mm slip fit, and .25 (6.35mm) in 1⁄2" UNF – male only.
The mini Q-Tec has five rings machined into the tube, halfway along the length.
• Weight - 118g
• Length - 111mm
• Diameter - 31.25mm
• Designed for - Non-Air Arms brands that have a 1⁄2" UNF male thread at the muzzle

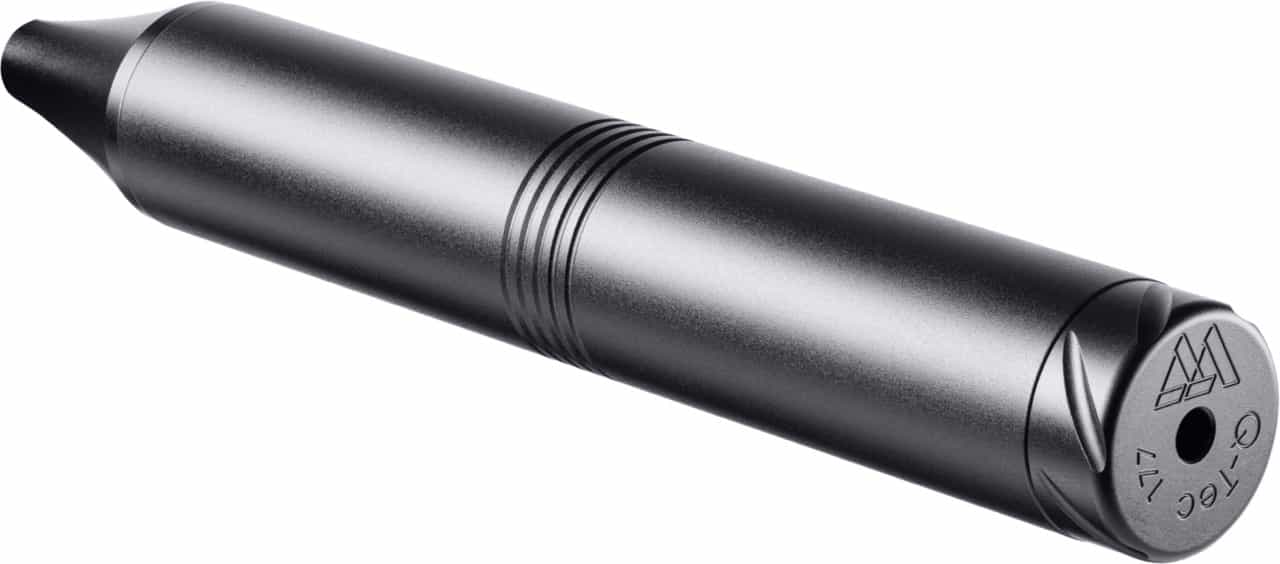

Q-Tec Moderator 10mm Slip
The Q-Tec 10mm slip-fit moderator was designed for use with the Air Arms S410/400 model rifles.
This moderator is calibre-specific and is available in .177 (4.5mm) and .22 (5.5mm) calibres.
The moderator is fixed using an M5 set screw that pinches onto the barrel.
• Weight - 197g
• Length - 219mm
• Diameter - 31.25mm
• Designed for - S410/400 range of rifles (excluding the MPR) and barrels with a
10mm diameter
Standard Moderator 10mm Slip
The standard 10mm slip-fit moderator was designed for use with the Air Arms S410/400 model rifles.
This moderator is not calibre-specific.
The moderator is fixed using an M5 set screw that pinches onto the barrel.
• Weight - 165g
• Length - 205mm
• Diameter - 29.6mm
• Designed for - S410/400 model range (excluding MPR variants) and barrels with a
10mm diameter muzzle
Standard Moderator 15mm Slip
The standard 15mm slip-fit moderator was designed for use with the Air Arms S200 model rifles. This
moderator is not calibre-specific.
The moderator is fixed using an M5 set screw that pinches onto the barrel.
• Weight - 165g
• Length - 205mm
• Diameter - 29.6mm
• Designed for - S200 model range and barrels with a 15mm diameter muzzle
Standard Moderator UNF Male
The Standard 1⁄2" UNF - Male moderator was designed for use with any rifle that has a 1⁄2" UNF female
thread at the muzzle. Air Arms specific models are the S510/500 range (excluding the Tactical
models) and the TX Hunter Carbine models. This moderator is not calibre-specific.
• Weight - 165g
• Length - 205mm
• Diameter - 29.6mm
• Designed for - S510/500 range (excluding the S510 Tactical) and TX Hunter Carbine
or any gun with a 1⁄2" UNF – Female thread at the muzzle
